V. DIPESH KUMAR & CO. OFFERS RANGE

TOTAL FLUID SEALING PRODUCTS

(Non-Asbestos Gland Packings & Cartige Seal)
Technical Data Sheet
VD SEAL
(Graphite Products)
   PERMA-SEAL : Flexible Graphite Tape (Non - Adhesive)

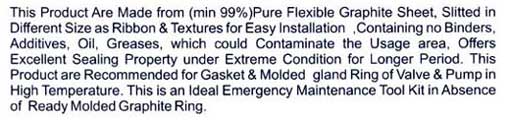

This Product Are Made From (min 99 %) Pure Flexible Graphite sheet, Slitted in different size as ribbon & textures for easy installation. Containing no binders, additives, oil, greases, which would contaminate the usage area. Offers excellent sealing property under extreme condition for longer period. This products are recommended for gasket & molded gland ring of valves & pump in high temperature. This is an ideal emergency maintenance tool kit in absence of ready molded graphite ring.

PERMA-SEAL : Flexible Graphite Tape (Non - Adhesive)
  " PERMA-SEAL" : Flexible Graphite Tape (Self - Adhesive)
" PERMA-SEAL" : Flexible Graphite Tape (Self - Adhesive)

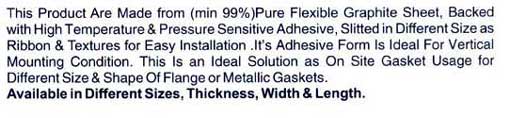

This Product are made from ( min 99 %) pure flexible graphite sheet, backed with high temperature ribbon & textures for easy installation.  It’s Adhesive from is for vertical mounting condition. This is an ideal solution as on site gasket usage for different size & shape of flange or metallic gaskets.
Available in different sizes, thickness, width & length.

   PERMA-SEAL : Flexible Graphite Seal (RING)

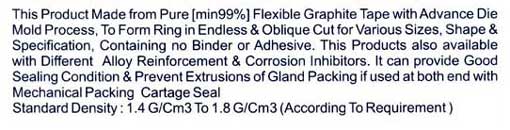

This Product made from pure (min 99 %) Flexible graphite tape with advance die mold process. To form ring in endless & oblique cut for various sizes, shape & specification, containing no binder or adhesive. This product also available in with different alloy reinforcement & corrosion inhibitors. It can provide good sealing condition  prevent extrusions of gland packing if used at both end with mechanical packing cartage seal.
Standard Density : 1.4 G/Cm3 to 1.8 G/Cm3 ( According Ro Requirement)
PERMA-SEAL : Flexible Graphite Seal (RING)
  " PERMA-SEAL" : Flexible Graphite Sheet & Gasket
PERMA-SEAL" : Flexible Graphite Sheet & Gasket

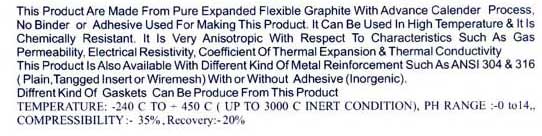

This Product are made from pure expanded flexible graphite tape with advance calendar. Process , No Binder or Adhesive used for making this product it can be used in high temperature  it is chemically resistant. It is very anisotropic with respect to characteristics such as gas permeability, electrical resistivity, coefficient of thermal expansion  thermal conductivity. This product is also available with different kind of metal reinforcement such as ANI 304 & 316 ( Plain, Tangged Insert or Wiremesh) With or Without Adhesive (Inorganic).
Different kind of gaskets can be produce from  this product.
Temperature :  -240 C to – 450 C ( Upto 3000 C Inert Condition), PH RANGE : 0 to 14
Compressibility : 35 % Recovery : 20 %
  VD SEAL Style : 1238 E : Pure Flexible Graphite Braided Packing

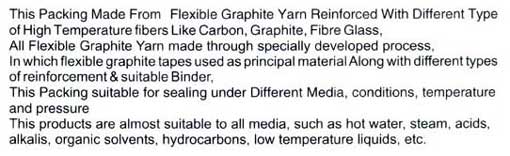

This Packing made from flexible graphite yarn reinforced with different type of high temperature fibers like carbon, graphite, fibre glass. All flexible graphite yarn made through specially developed process. In Which flexible graphite tapes used as principal material along with different types of reinforcement & suitable binder.
This Packing suitable for sealing under different media, conditions,temperature and pressure.
This products are almost suitable to all media, such as hot water, steam, acids, alkalis, organic solvents, hydrocarbons, low temperature liquids, etc.

TUFF SEAL Style : 1238 E : Pure Flexible Graphite Braided Packing

This product Replaced & Used As Non-Asbestos Valve Steam Packing Against Conventional Asbestos Reinforement Packing. This Packing Is Also Avialable With Diffrent Mettalic Reinforment Such As S.S. & Inconel. This Packing Can Be Used To Produce Die Mold Cut Ring in Accurate Size. Both Packing & Die Mold Ring Can be Produce with corrosion inhibitors on special demand of customers, to use this products under severely corrosive circumstances, for effective sealing property.
Density : 1.3 to 1.6 CM, Temperature -250 C to 800 C (Steam)
PH range 0 to 14, Surface Speed 10M/Se
Pressure up to 450 BAR
Properties Of "PERMA-SEAL" Graphite
Carbon Content
 >99%
Ash Content
<1%
sulphur Content
<1000 ppm
Chloride Content
<40ppm
Ignition Loss @ 450 C
<2%
Ignition Loss @ 600 C
<20%
